4G GPS Tracker MT600

4G GPS Tracker MT600 2017-09-30T13:52:38+00:00

Project Description

MT600 is the latest 4G GPS tracker support LTE/WCDMA/UMTS.This device can locate and monitor any remote targets by SMS/PC/APP. The user also can remote cut off oil/power and check the historical record.

The unit features excellent and stable work performance.It used for vehicle tracking and fleet management.

Functions:

  • 4G LTE network support
  • Real-time position inquire
  • Vehicle trip history on web
  • SOS alarm
  • ACC switch alarm
  • Geo-fence alarm
  • External power cut off alarm
  • Remote cut off fuel/power (optional)
  • Vehicle towing alarm
  • Overspeed alarm
  • Backup battery low power alarm
  • Car battery low power alarm
  • High temperature alarm
  • Power saving mode
  • Mileage report
  • Camera(optional for ODM only)
  • Door sensor(optional for ODM only)
  • Fuel sensor(optional for ODM only)

Applications

  • Yachts and Boats tracking
  • Vehicle/Truck tracking
  • Asset security
  • Fleet Management

Advantages

  • Qualcomm 4G LTE chip
  • Global Frequency is optional
  • U-BLOX7 GPS chipset
  • Unique design and multiple color to optional
  • IOS & Android support
  • Protocol is open and compatible other third party platform
  • White Label

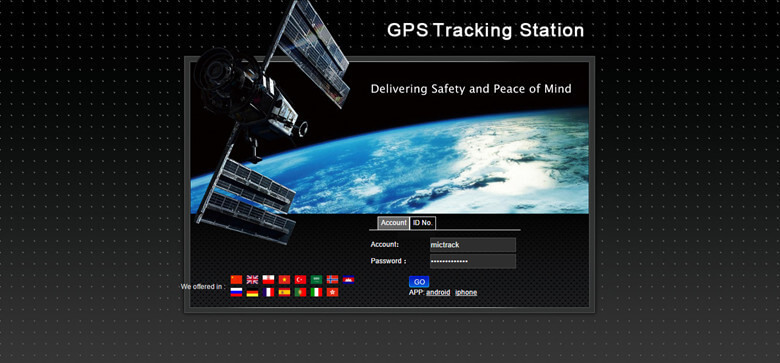

gps-tracking-systems-1

gps-tracing-systems-2gps-tracking-systems-3

user_manual

Dimension90(L)*70(W)*24(H)mm
Weight138g
Input Voltage12-36 VDC
Backup battery3.7V 500 mAh
Power Consumption50mA standby current at 12 V
Working hours10 hours in power-saving mode, 4 hours in normal mode







4G Frequency bands
MT600-E
4G LTE: B1/B3/B5/B7/B8/B20
3G WCDMA : 850/900/2100MHz
2G: 900/1800MHz
MT600-A
4G LTE: B2/B4/B12
3G WCDMA: 850/1700/1900MHz
MT600-V
4G LTE: B4/B13
MT600-AU
4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40
3G WCDMA: 850/900/1900/2100MHz
2G :850/900/1800/1900MMz
MT600-AUT
4G LTE: B1/B3/B5/B7/B28
3G WCDMA: 850/2100MHz
MT600-J
FDD LTE: B1/B3/B8/B18/B19/B26
Note: Select correct device according to your local frequency band
GPS sensitivity-162dBm
Channel56
Positioning Accuracy10m
Cold Start30s
Warm start15s
Hot start1s
Working temperature-20°C to +60°C
Humidity5% to 95% non-concretion
Antennaexternal 4G/GPS antenna
Sensor3D accelerometer sensor, temperature sensor
LED4G(blue), GPS(green), Power(red)
SIM Card interfaceStandard Size SIM
CertificateCE/NBTC/NCC
  • 1* MT600 4G GPS Tracker
  • 1* GPS Antenna
  • 1* 4G Antenna
  • 1* Power wire
  • 1* SOS Button
  • 1* SIM Card tray
  • 1* User Manual

MT600-Accessoriesr
