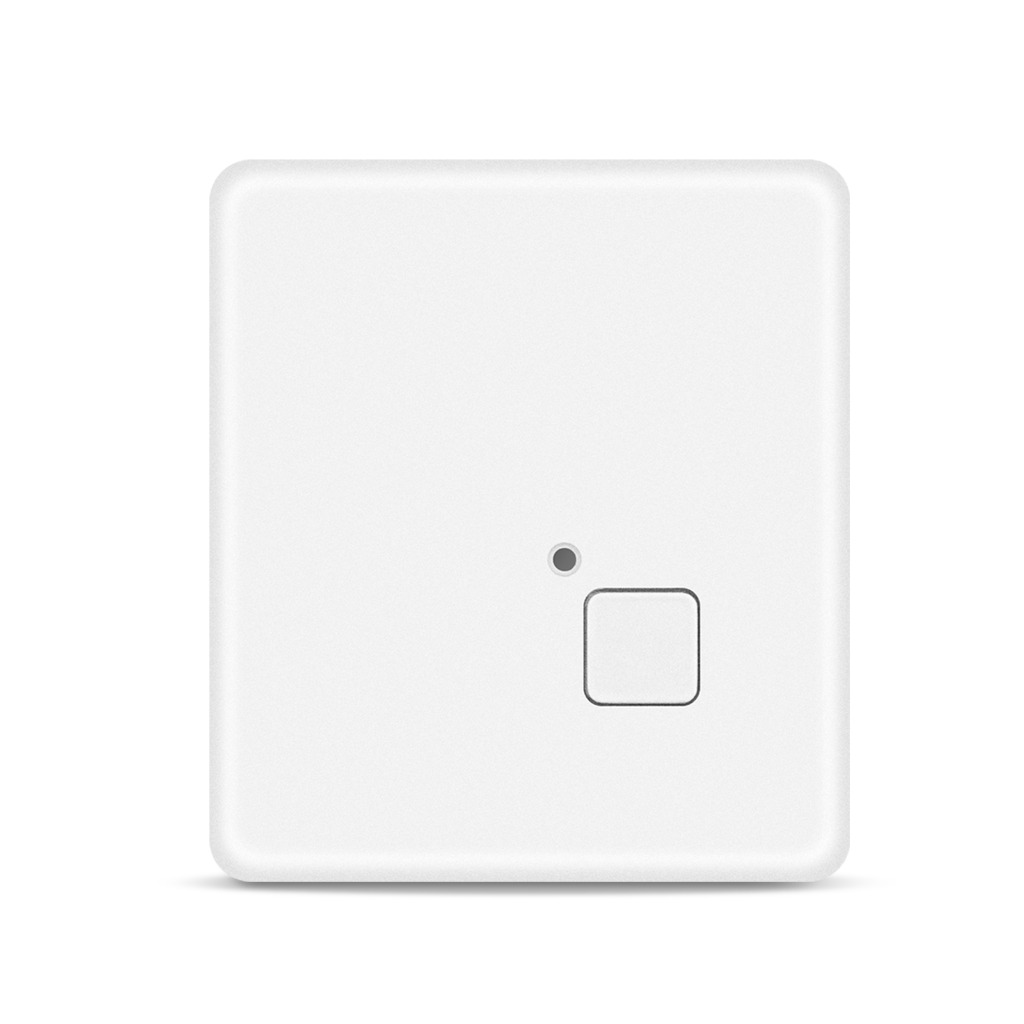

MT710 Compact Asset GPS Tracker
A 35g compact tracker for space-constrained assets with LTE-M & NB-IoT connectivity and 2G fallback.
- 35g
- 46×41×16mm
- LTE-M & NB-IoT with 2G fallback
- IP68
MT710 at a Glance
- Cellular Connectivity
- LTE-M & NB-IoT with 2G fallback
- Positioning Technology
- GPS+LBS+WiFi
- Battery
- 650mAh rechargeable Li-polymer
- Charging
- Magnetic pogo-pin connector
- Protection
- IP68
- Dimensions
- 46 × 41 × 16 mm
- Weight
- 35g
- Protocol
- Open Protocol
Compact installations · Smaller assets · Portable equipment · Rental assets · Flexible mounting
Designed for Compact Installations
MT710 is not a smaller MT700 — it's built for installations where mounting space, device weight, and enclosure size are the deciding factors, not maximum battery life.
A smaller, lighter enclosure fits installations where a full-size tracker cannot — inside toolboxes, on portable equipment cases, or attached to smaller assets — while still meeting outdoor durability requirements.
- Recharges via a sealed external magnetic pogo-pin connector — no need to open the casing
- Mounts with industrial adhesive, cable tie/lanyard, or an optional magnetic holder
- Integrated SOS emergency button for field/lone-worker use cases
Need maximum long-life for a fixed remote deployment instead? View MT700 →
Low-Power Operation
Under frequent active tracking, runtime may reduce to approximately 3–7 days depending on reporting interval, motion activity, GNSS acquisition, and network conditions. An internal accelerometer powers down cellular and GNSS radios when motionless, waking immediately on movement or vibration.
Low-Power Cellular Connectivity
Network availability and supported bands vary by country and carrier — coverage should be confirmed for your target market. WiFi access point sniffing helps determine location where GNSS reception is limited (e.g. indoors); MT710 still reports over the cellular network, not WiFi. Deploying where LTE-M & NB-IoT coverage is limited? See MT710L for standard 4G LTE Cat 1 bis coverage instead.
Use MT710 With Your Own Platform
MT710 is hardware designed for integration — not a closed platform. It reports over an open protocol so you control where the data goes.
- Open protocol over TCP/UDP
- Reports directly to your own server
- Compatible with third-party tracking platforms (e.g. Traccar, Wialon, Flespi)
- Mictrack Config Tool for supported device configuration
Where MT710 Fits Best
MT710's compact size and flexible mounting make it easy to install and redeploy across a growing rental fleet as customers and locations change.
MT710 offers a practical, compact fit for non-powered trailers where installation flexibility matters more than maximum operating life.
Technical Specifications
| Cellular | |
|---|---|
| Cellular Connectivity | LTE-M & NB-IoT with 2G fallback |
| Frequency Bands | LTE-M & NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28 2G GSM: 850 / 900 / 1800 / 1900 MHz |
| Positioning | |
| Positioning Technology | GPS+LBS+WiFi |
| Power | |
| Battery & Autonomy | 650mAh rechargeable Li-polymer battery — up to 1 year @ 1 report/day (deep sleep) or 3–7 days (active motion-tracking), magnetic connector charging |
| Physical | |
| Dimensions & Weight | 46 × 41 × 16 mm (1.81 × 1.61 × 0.63 in) · 35g (1.23 oz) |
| Mounting & Accessories | Lanyard attachment, optional silicone protective case, magnetic holder |
| Environmental | |
| Housing & Protection | IP68 sealed waterproof and dust-tight enclosure, compact durable casing |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| SIM / Interface | |
| Reporting Modes | 11 configurable working modes (periodic interval, motion wake-up, home beacon, portable asset mode) |
| Safety & Hardware Inputs | Integrated SOS emergency button, magnetic charging interface, status LED indicators |
| Onboard Buffer | Stores location records during cellular blind spots, auto-transmits upon reconnection |
| Certifications | CE / RED (Europe), FCC (North America), RoHS, WEEE compliant |
MT710 FAQ
How long can the MT710 battery last?
Product specification: the 650mAh internal battery supports up to 1 year of operation at 1 report/day in deep sleep mode, or 3-7 days in active motion-tracking mode. Actual operating life depends on reporting frequency, positioning conditions, cellular coverage, movement, temperature, and configuration.
What networks does MT710 support?
MT710 supports LTE-M and NB-IoT, with automatic 2G quad-band GSM/GPRS fallback. Network availability and supported bands vary by country and carrier, so coverage should be confirmed for your deployment market.
What is WiFi positioning used for on MT710?
WiFi positioning is an additional location source, not a data connection. MT710 uses WiFi access point sniffing to help determine location where GNSS reception is limited, such as indoors or in dense urban environments. Data is still transmitted over the cellular network (LTE-M & NB-IoT with 2G fallback), not over WiFi.
Can MT710 connect to my own server?
Yes. MT710 reports over an open protocol via TCP/UDP, so it can send data directly to your own server IP/port or to third-party platforms such as Traccar, Wialon, and Flespi, without proprietary middleware or subscription lock-in.
Is MT710 suitable for outdoor use?
Yes. MT710 has an IP68-rated waterproof and dust-tight enclosure and an operating temperature range of -20°C to +70°C (-4°F to +158°F).
Can I order a sample before a volume order?
Yes. MOQ is 1 unit. Samples ship the same way — order 1 unit and it goes out within 1-2 days, so you can test before committing to a volume order.
Planning a Compact Asset Tracking Project?
Tell us what you need to track and where it will be installed. We’ll help you evaluate whether MT710 fits your project.
