Project Description

The MP90 is a plug-and-play 4G OBD tracker without wiring. Easy install to any vehicle with a standard OBD II connector. It can be used locate, track and monitor the vehicle via SMS, PC Computer or Mobile APP. It is commonly used to track and locate individual vehicles, the user also can real time tracking and check the historical route travelled.

Features

  • 4G FDD LTE network support (also support 3G/2G network)
  • OBD II connector easy to install (Plug and Play)
  • Real-time position acquiring
  • Voice / Audio monitoring
  • Vehicle trip history and mileage data on web tracking platform
  • SOS alarm button and real time reporting (optional)
  • Geo-Fence alarm and reporting
  • Vehicle towing / Movement alarm
  • Over-Speed alarm and reporting
  • Remove and disconnect alarm
  • Backup battery low power alarm
  • Car battery low power alarm
  • High temperature alarm
  • Power saving / sleep mode
  • Mileage report

Applications

  • Vehicle/truck tracking
  • Asset security
  • Fleet Management

Advantages

  • Qualcomm 4G LTE chip solutions
  • Easy installation Plug and Play
  • U-BLOX7 GPS chipset
  • Unique design & White Label
  • Protocol is open and compatible other third party platform
  • IOS & Android support
  • CE Certificate
  • OEM/ODM

user_manual

Dimension67(L) x 50(W) x 25(H) mm
Weight65g
Power supply12-24 VDC
Backup battery3.7 V 120 mAh
Power consumption50mA standby current at 12 V
Operating temperature-20°C to 55°C
Humidity5%~95% non-concretion
Working hour2 hours in power-saving mode, 0.5 hours in normal mode
LED indicator4G(RED), GPS(BLUE)
Sensor3D acceleration sensor
AntennaInternal 4G & GPS antennas
GPS Sensitivity-162dBm
Positioning Accuracy2.5m





4G Frequency bands		MP90-A (US/Canada/Mexico)
4G LTE: B2/B4/B12
3G WCDMA: 850/1700/1900MHz

MP90-E (Europe/Asia/Africa)
4G LTE: B1/B3/B7/B8/B20/B28A
3G WCDMA : 900/2100MHz
2G: 900/1800MHz

MP90-AU (Australia/New Zealand)
4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40
3G WCDMA: 850/900/1900/2100MHz
2G :850/900/1800/1900MMz
Note: Select correct device according to your local frequency bands.
SIM Card interfaceMicro Size SIM

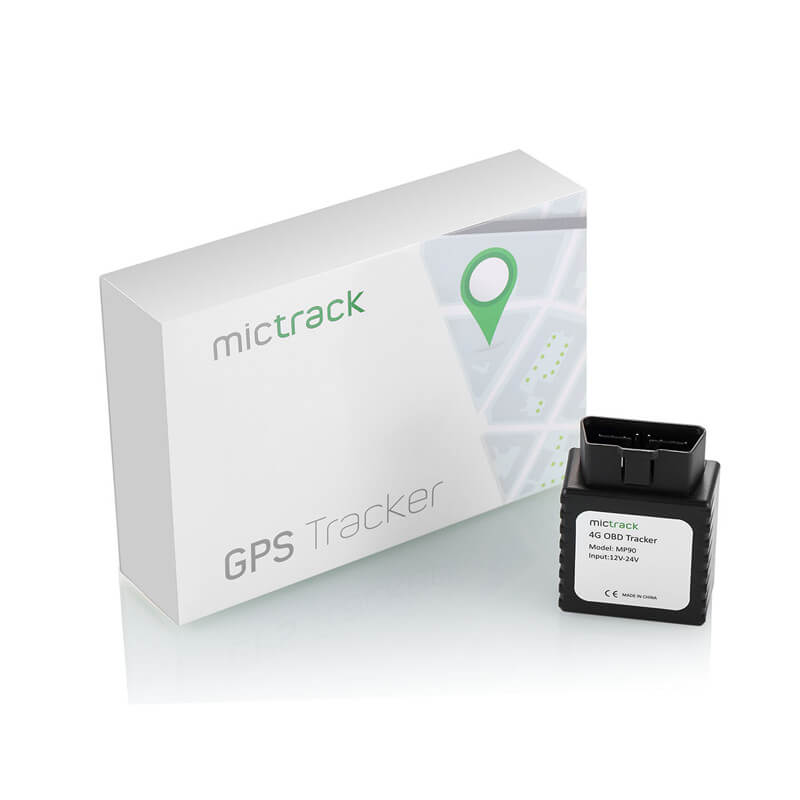

  • 1* MP90 4G OBD Tracker
  • 1* User Manual
