Project Description

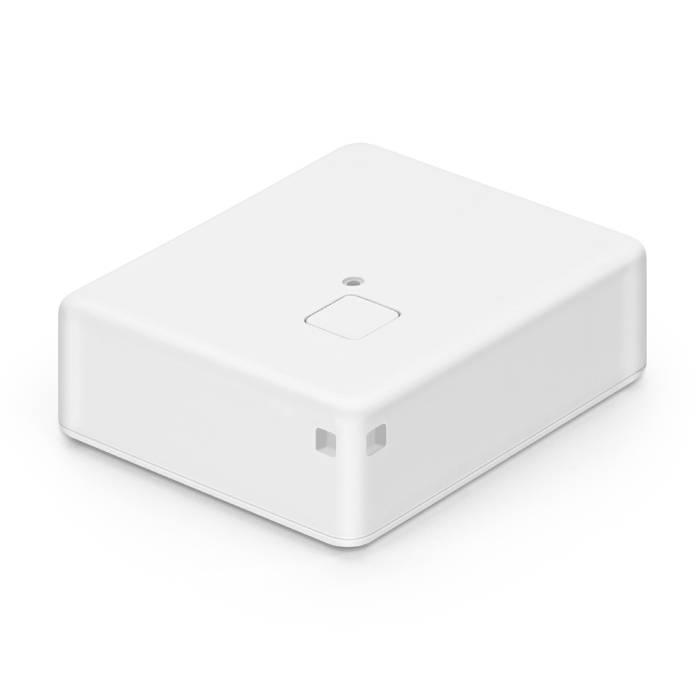

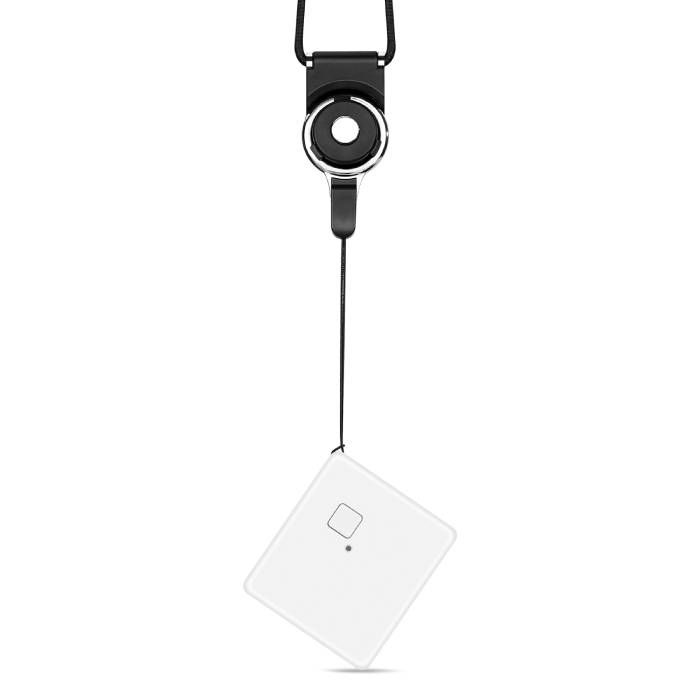

MT710 is a Mini waterproof GPS tracker that uses the latest CAT M1 & NB-IoT technology that can provide ultra-low power consumption and battery life up to 1 year.  It can be used for personal(kids/elderly), pets and fleet management, etc.

Applications

  • CAT M1 & NB-IoT network (works in Global)
  • Battery Life up to 1 year
  • Waterproof IP68
  • Real-timing tracking
  • GPS+WiFi Positioning
  • History record check
  • Geo-Fence alarm
  • Low battery alarm
  • PC & Mobile App tracking
  • TCP/UDP protocol

Applications

  • Kids & Elderly tracking
  • Lonely workers tracking
  • Pets tracking
  • Sports tracking
  • Cows tracking
  • Logistics
  • Asset tracking
Dimension41(L)*41(W)*15(H)mm
Weight29g
Power ConnectorMagnetic charging DC 5V
Backup battery3.7 V 620mAh

Frequency bands
Cat M1 (LTE-M, eMTC) :
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE TDD: B39

NB-IoT (Cat NB1):
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28

GSM: 850/900/1800/1900Mhz
PositioningGPS, WiFi
GPS sensitivity-162dBm
Channel56
Positioning Accuracy5-10m
Cold Start30s
Warm start15s
Hot start1s
Working temperature-20°C to +65°C
Humidity5% to 95% non-concretion
AntennaInternal LTE CAT M1 & NB-IoT & GPS & WiFi antennas
Sensor3D accelerometer sensor
LEDRED(Charge), GREEN(Cellular and GPS)
WaterproofIP68
SIM Card interfaceNano SIM
Certificate(Module)FCC/PTCRB/AT&T/Verizion/T-Mobile/Vodafone
